• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1952 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 81937

• • alternative name: Heath Company

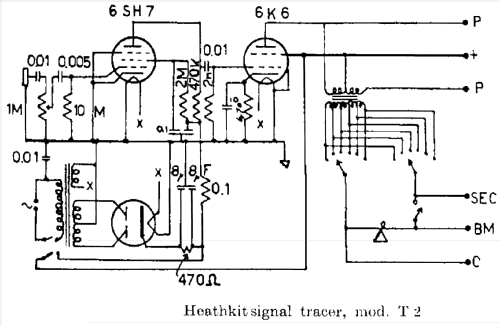

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6SH7 6K6 6X5

• Main principle
• Audio-Amplification

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Signal tracer T2 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Notes

• This device has a loudspeaker to hear the signal that is being sent to the output terminal. The device can test microphones, phonographs, and amplifiers.
