• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1954 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 76332

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12C8 12SH7 12A6 6X5 1629

• Main principle
• Audio-Amplification

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

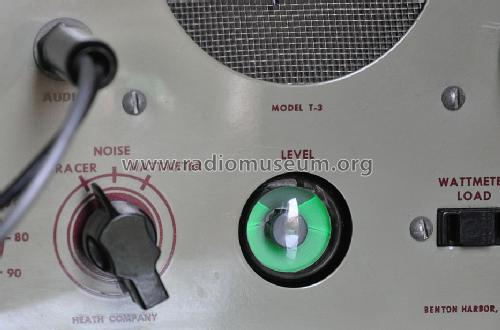

• Model: Visual-Aural Signal Tracer T-3 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 9.5 x 6.5 x 5 inch / 241 x 165 x 127 mm

• Notes

• Heathkit Visual-Aural-Signal-Tracer T-3.

  A very versatile new tool for repairing AM - FM and TV circuits.
  A Radio Frequency input which, when used with a special Probe supplied, has the sensitivity that allows it to detect the radio signal on the receiver antenna. It can be used as a high gain amplifier for tuner, pick-up and microphone tests.

  In Italy it was offered both as a kit at ITL 33,000 and assembled at ITL 40,000. (1954)



• Net weight (2.2 lb = 1 kg)
• 3.632 kg / 8 lb 0 oz (8 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• -- Original prospect or advert (Original catalog by Larir, agent for Italy, 1954.)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
