• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1966–1974

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 79930

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6EA8 6EA8 6EA8 6AU6 6AU6 6AU6 6AU6 6AU6 6BE6 12BY7 12AT7 6EB8 6GE5 6GE5

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

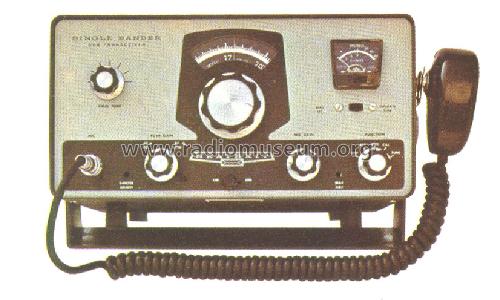

• Model: Single-Bander HW-32A - Heathkit Brand, Heath Co.;

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 262 x 162 x 308 mm / 10.3 x 6.4 x 12.1 inch

• Notes
• Heathkit 20-m-SSB-Mobil-Transceiver HW-32A.
  Stationärer Betrieb mit Netzteil HP-23A, Mobilbetrieb mit Transistorwandler HP-13A.
  Bausatz 690,- DM, betriebsfertig 1090,- DM in DL.
  For aditional informations see HW-12A.

• Net weight (2.2 lb = 1 kg)
• 4.9 kg / 10 lb 12.7 oz (10.793 lb)

• Price in first year of sale
• 100.00 $

• Source of data
• Heathkit: A Guide to Amateur Radio Products

• Mentioned in
• -- Original-techn. papers. (Heathkit Katalog 1971/72)

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
