Solid State Dip Meter HD-1250

• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1975–1991 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 87810

• • alternative name: Heath Company

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Solid State Dip Meter HD-1250 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 2.5 x 2.5 x 6 inch / 64 x 64 x 152 mm

• Notes

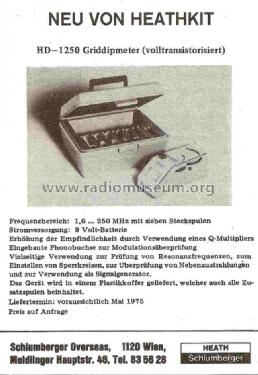

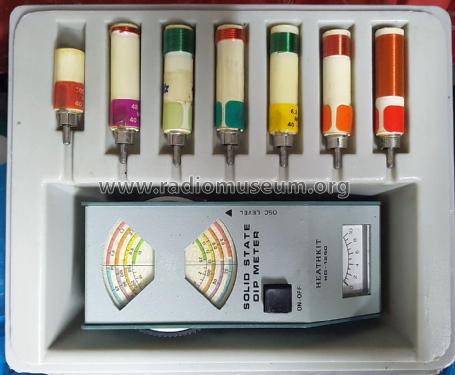

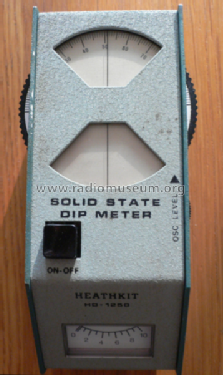

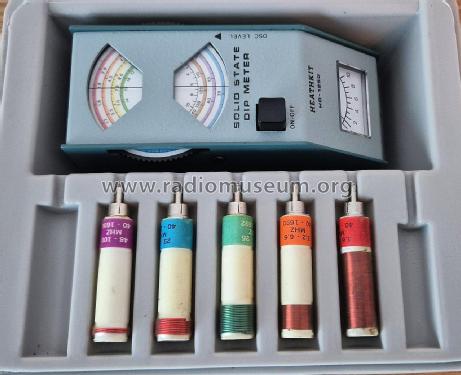

• Heathkit Solid State Dip Meter HD-1250.
  Frequency range 1.6 to 250 MHz with seven changeable coils.

• Net weight (2.2 lb = 1 kg)
• 0.9 kg / 1 lb 15.7 oz (1.982 lb)

• Price in first year of sale
• 130.00 $

• Source of data
• Heathkit: A Guide to Amateur Radio Products
