SP-2, SP-2A
Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Year
- 1958
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 128197
-
- alternative name: Heath Company
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 115-125 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: SP-2, SP-2A - Heathkit Brand, Heath Co.;
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 15 x 4.6 x 7.8 inch / 381 x 117 x 198 mm
- Notes
-
Stereo version of the preamp Heathkit SP-1, SP-1A.
SP-2 was a stereo preamplifier of modular design.
The SP-2A followed a year later, with minor circuit changes, no change in appearance. Rated distortion was cut in half.
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Price in first year of sale
- 57.00 $

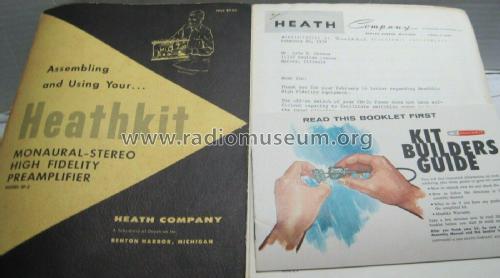

- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
