• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1966–1975 ?

• Category
• Amateur Transmitter (only)

• Radiomuseum.org ID
• 87675

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6AU6 6AV11 6AW8 6CL6 6D10 6EA8 6EW6 6EW6 6J11 6BZ6 6146 6146 0A2

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 105-125;210-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: SB-401 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14.87 x 6.625 x 13.37 inch / 378 x 168 x 340 mm

• Notes

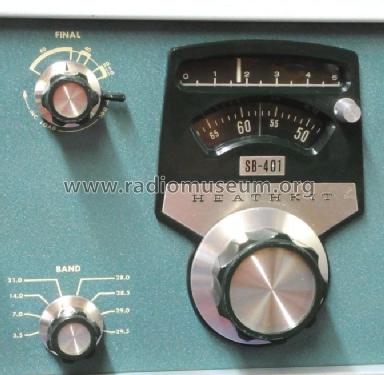

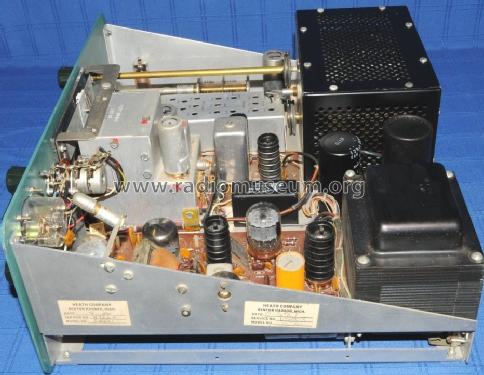

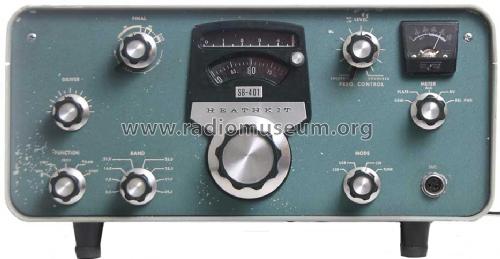

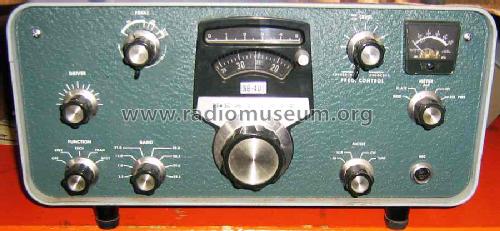

• Heathkit HF-Transmitter SB-401.
  Covers 80 to 10 m HAM bands in SSB and CW; P_out: abt. 100 W.

• Net weight (2.2 lb = 1 kg)
• 16.4 kg / 36 lb 2 oz (36.123 lb)

• Price in first year of sale
• 285.00 $

• Source of data
• Heathkit: A Guide to Amateur Radio Products
