• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1974–1983

• Category
• Amateur Equipment (Other, but not Key)

• Radiomuseum.org ID
• 89072

• • alternative name: Heath Company

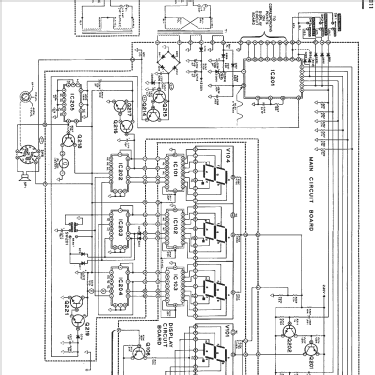

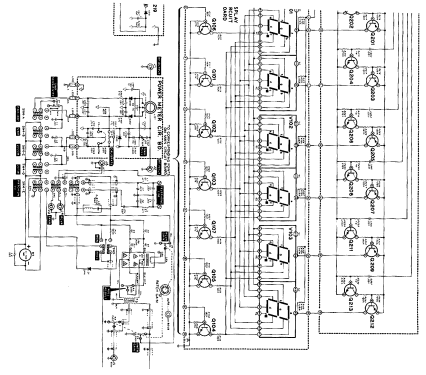

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 120; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Station Console SB-634 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 10.25 x 7.25 x 15.25 inch / 260 x 184 x 387 mm

• Notes
• Heathkit Station console SB-634 with phone patch, SWR meter and digital clock with timer. Matches SB-104.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 199.00 $

• Mentioned in
• Heathkit: A Guide to Amateur Radio Products (p. 207)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
