• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1960

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 341158

• • alternative name: Heath Company

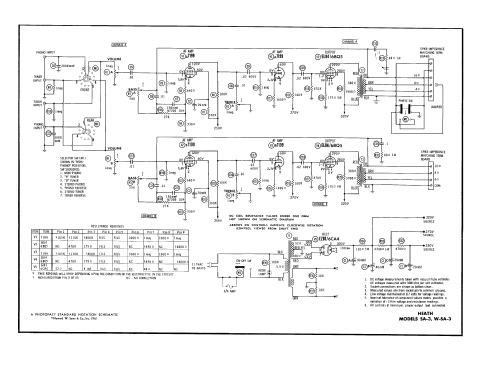

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 7199 7199 6BQ5 6BQ5 6CA4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 6 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Amplifier SA-3 - Heathkit Brand, Heath Co.;

• Shape
• Book-shelf unit.

• Notes

• Replaced by AA-201 in 1961, identical except for paint colors

• Net weight (2.2 lb = 1 kg)
• 13 lb (13 lb 0 oz) / 5.902 kg

• Price in first year of sale
• 29.95 USD

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (1)
• Heathkit Catalog, March 1960, page 9

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (set 540, folder 11, July 1961)

• Author
• Model page created by Thomas Bavis. See "Data change" for further contributors.
