• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1955–1957

• Category
• Amateur Transmitter (only)

• Radiomuseum.org ID
• 81870

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6AU6 12BY7 5763 6146 6146 6AQ5 5V4 6AL5 1625 1625 12BY7 12AX7 5R4GY 5R4GY 0A2

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: DX-100 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 20.875 x 13.75 x 16 inch / 530 x 349 x 406 mm

• Notes

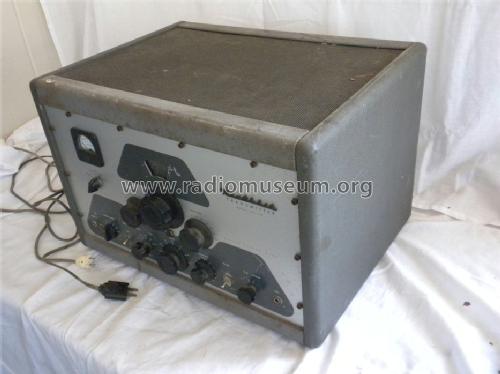

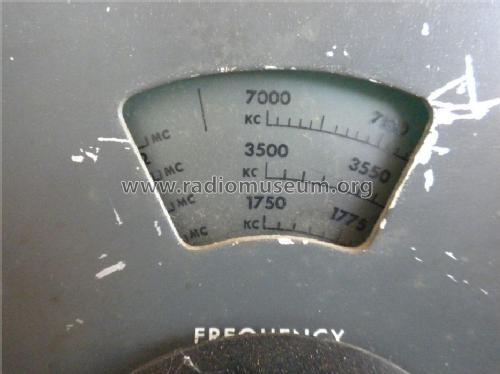

• Heathkit Amateur-Transmitter DX-100.
  Coverage 160-, 80-, 40-, 20-, 15-, 11- and 10-m-bands; P_out: 125 W in AM, 140 W in CW.

• Net weight (2.2 lb = 1 kg)
• 52.5 kg / 115 lb 10.2 oz (115.639 lb)

• Price in first year of sale
• 190.00 $

• Mentioned in
• Heathkit: A Guide to Amateur Radio Products (2. Ed. 2003)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
