Tube Checker TC-2
Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Year
- 1953 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 87547
-
- alternative name: Heath Company
Click on the schematic thumbnail to request the schematic as a free document.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Tube Checker TC-2 - Heathkit Brand, Heath Co.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 14 x 11 x 4.25 inch / 356 x 279 x 108 mm
- Notes
-

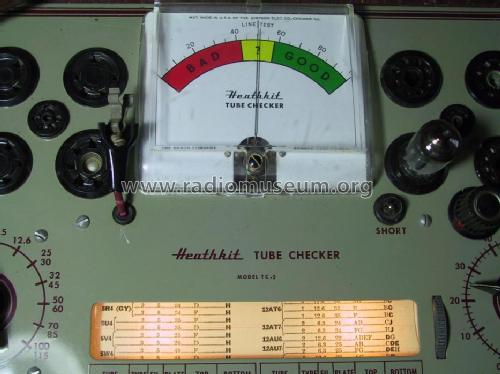

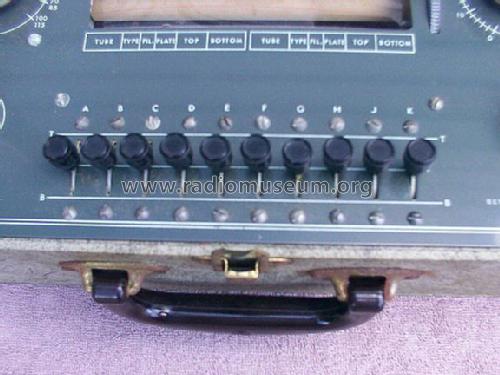

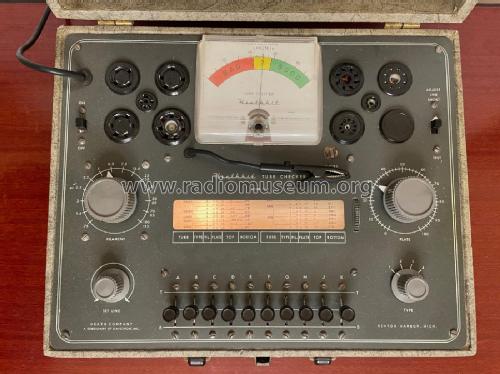

A tube tester with tube characteristics (type, filament voltage, plate voltage etc.) on a roll inside the instrument. Sockets for 4, 5, 6 and 7 pins, octal, loctal and miniature 7 and 9 pins, also for Hytron 5 pins, and a free socket for future tube.
In Italy it was offered both as a kit at ITL 42,000 and assembled at ITL 52,000. (1954)
- Net weight (2.2 lb = 1 kg)
- 10 lb 8 oz (10.5 lb) / 4.767 kg
- Literature/Schematics (1)
- -- Original-techn. papers.
- Literature/Schematics (2)
- -- Original prospect or advert (Original catalog by Larir, agent for Italy, 1954)
- Author
- Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
