• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1973

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 175613

• • alternative name: Heath Company

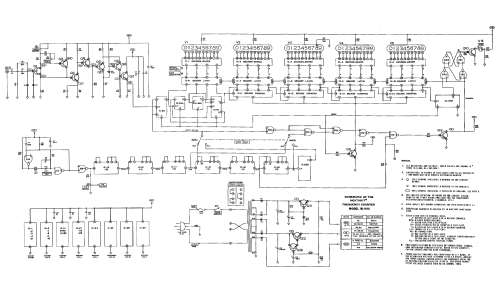

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Frequenzzähler IB-1100 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 184 x 79 x 226 mm / 7.2 x 3.1 x 8.9 inch

• Notes
• Frequenzbereich: 1 Hz...30 MHz. Anzeigegenauigkeit: +/- 1 Digit.
  Eingangsempfindlichkeit: 100 mVeff. Torschaltzeit: 1 ms mit autom. Rücksetzung.
  Eingansimpedanz: 1 MOhm / 20 pF. Taktzeit: 1 MHz. Anzeige: 5-stellig durch Kaltkathoden-Glimmziffernröhren.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
