• Country
• Great Britain (UK)

• Manufacturer / Brand
• Heathkit (UK) by Daystrom

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 173345

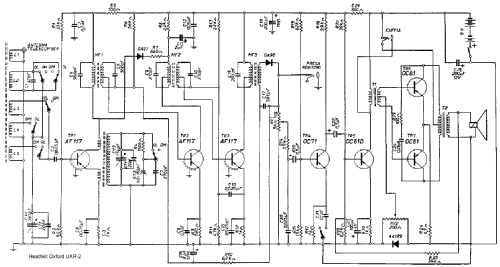

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF117 AF117 AF117 OC71 OC81D OC81 OC81

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

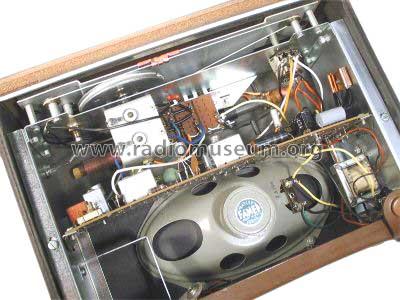

• Model: Oxford UXR-2 - Heathkit UK by Daystrom

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 11 x 8 x 3.875 inch / 279 x 203 x 98 mm

• Notes
• Supplied as a self-assembly kit. Elliptical loudspeaker 7 x 4 inch.

• Net weight (2.2 lb = 1 kg)
• 6 lb (6 lb 0 oz) / 2.724 kg

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (2)
• - - Manufacturers Literature

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
