• Country
• Great Britain (UK)

• Manufacturer / Brand
• Heathkit (UK) by Daystrom

• Year
• 1965 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 80034

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC81 ECC81 EZ81

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 115-250 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

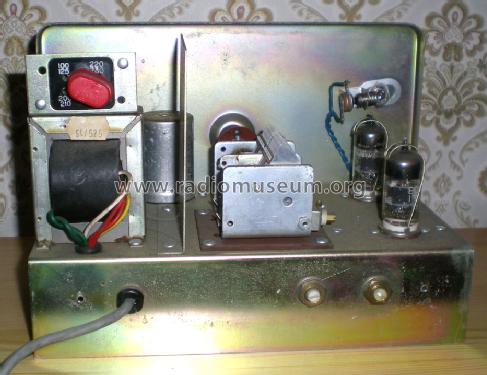

• Model: Sine-Square Wave Generator AO-IU - Heathkit UK by Daystrom

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 9.5 x 6.5 x 5 inch / 241 x 165 x 127 mm

• Notes
• 20Hz-150kHz.Price in Germany: Kit 189.-DM; ready for use 289.-DM.

• Net weight (2.2 lb = 1 kg)
• 3.8 kg / 8 lb 5.9 oz (8.37 lb)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
