UXR-1

• Country
• Great Britain (UK)

• Manufacturer / Brand
• Heathkit (UK) by Daystrom

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 133924

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC44 OC45 OC45 OC81D OC81 OC81

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

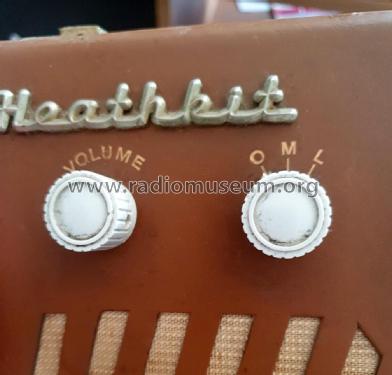

• Wave bands

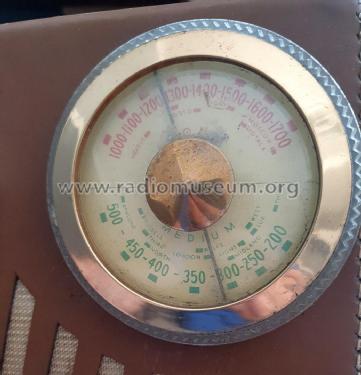

• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

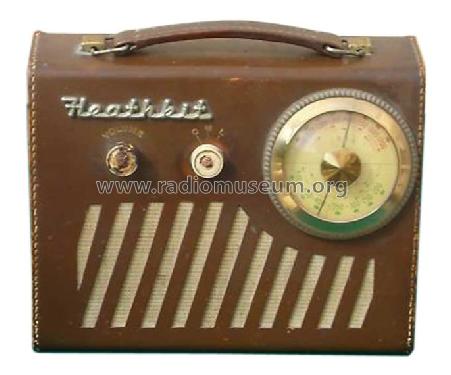

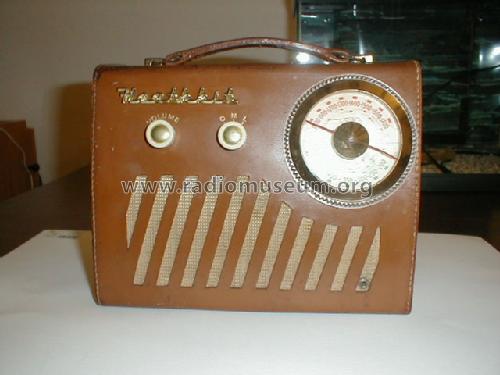

• Model: UXR-1 - Heathkit UK by Daystrom

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 190 x 100 mm / 9.8 x 7.5 x 3.9 inch

• Notes

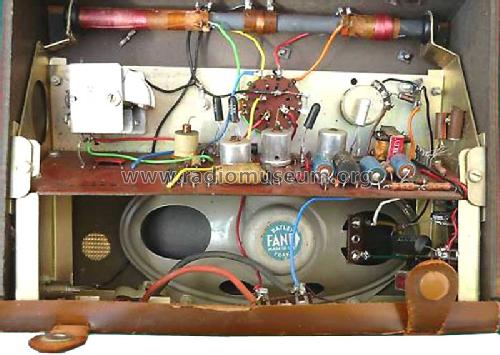

• Supplied as a self-assembly kit. Elliptical loudspeaker 7 x 4 inch, but may also have been available ready made.

  Push Pull audio output.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Mentioned in
• -- Original prospect or advert (Hi-Fi News 1961 - January)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Claudio Romanato. See "Data change" for further contributors.
