Interior 230 S

Heco, Hennel & Co. KG; Schmitten, Pulheim (auch Berlin)

Data
Forum
Pictures
Collections

  • Year
  • 1989
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 274328

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 100 W (130 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Interior 230 S - Heco, Hennel & Co. KG;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 250 x 390 x 250 mm / 9.8 x 15.4 x 9.8 inch
  • Notes

  • Heco 3-way 3-Speaker System Model Interior 230 S.
    Music Power Handling 130 Watts
    Nominal Power Handling 100 Watts
    40 - 30000Hz, 88dB/W/m, 4 Ohms
    CrossOver 800Hz, 5500Hz
    Drivers:
    1 x Heco KHC 19 M
    1 x Heco KMC 25
    1 x Heco TC 205

    Cabinet Finish:
    Ash-Tree decor black
    White, Black
    Walnut Decor
    Ferrari-red
    Ocean-blue

  • Mentioned in

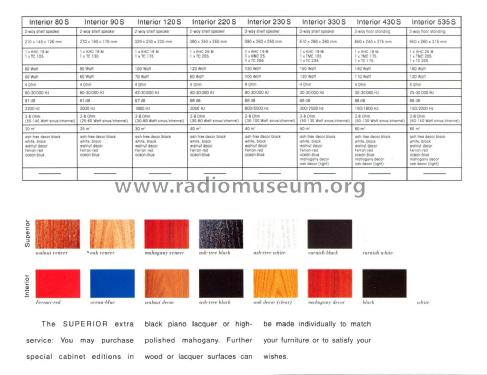

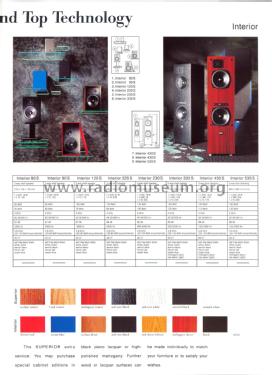

  • -- Original prospect or advert (Heco Katalog 1989 - Art in Performance)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
