• Year
  • 1976–1978
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 125275

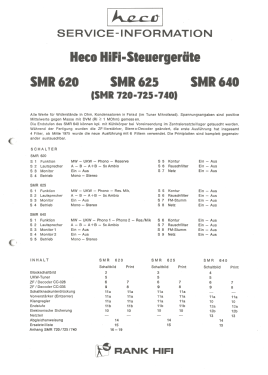

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • from Radiomuseum.org
  • Model: SMR725 - Heco, Hennel & Co. KG;
  • Shape
  • Book-shelf unit.
  • Notes
  • HiFi-Stereo-Steuergerät für 2× 20 W (Sinus) Ausgangsleistung.
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
