• Country
• Germany

• Manufacturer / Brand
• Heli Gerätebau, Hempel KG; Limbach-Oberfrohna, (Ostd.)

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 14963

• • alternative name: Gerätebau Limbach VEB
  • Brand: VEB Elektromechanik Mittweida

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EAF801 EABC80 EM84 ECL86 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

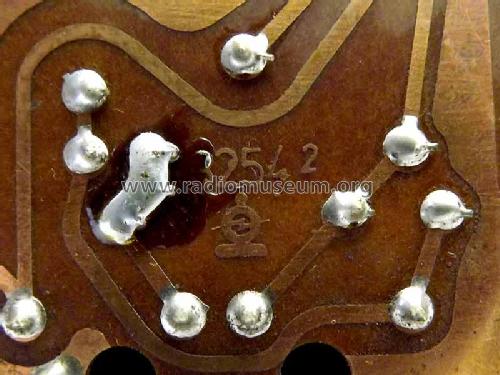

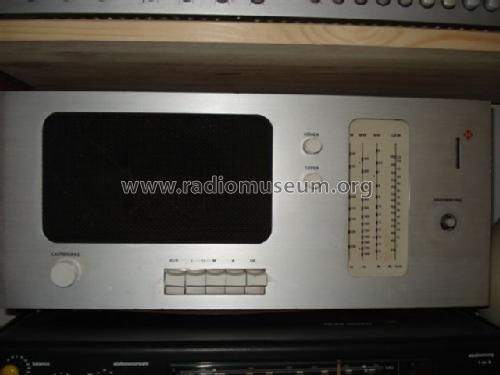

• Model: RC1 - Heli Gerätebau, Hempel KG;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 510 x 275 x 210 mm / 20.1 x 10.8 x 8.3 inch

• Notes
• Chassis entspricht Saalburg 5170 bzw. Korvette von "Funkmechanik Neustadt/Glewe" mit veränderten NF-Stufen (ECL86 mit aktiver Klangregelstufe statt EL84).
  Metallfront in Ausführung schwarz lackiert oder Aluminium gebürstet.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967 (Funkverlag Hein, Service-DVD)

• Other Models

• Here you find 119 models, 108 with images and 66 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Heli Gerätebau, Hempel KG; Limbach-Oberfrohna, (Ostd.)
