• Country
• Germany

• Manufacturer / Brand
• Heli Gerätebau, Hempel KG; Limbach-Oberfrohna, (Ostd.)

• Year
• 1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 122024

• • alternative name: Gerätebau Limbach VEB
  • Brand: VEB Elektromechanik Mittweida

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EBF89 EBF89 EM84 EZ80

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

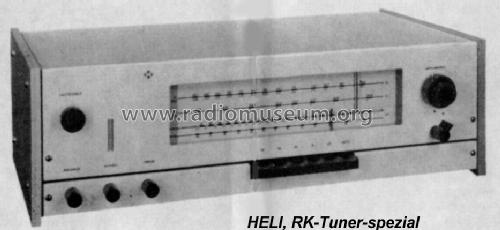

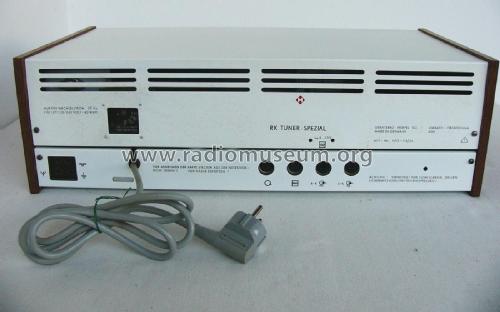

• Model: RK-Tuner [spezial] - Heli Gerätebau, Hempel KG;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 525 x 165 x 280 mm / 20.7 x 6.5 x 11 inch

• Notes
• Chassis wie RK-Tuner, Design "Bausteinserie '66". Zusätzlich 2 transistorisierte Einheits-Endstufen 2x6db, 600 Ohm mit erdfreien Ausgängen, für Studiobetrieb an Abhöreinrichtungen (VS1-32Z) geeignet.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
