- Country
- Germany
- Manufacturer / Brand
- Heli Gerätebau, Hempel KG; Limbach-Oberfrohna, (Ostd.)
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 14962
-
- alternative name: Gerätebau Limbach VEB
- Brand: VEB Elektromechanik Mittweida

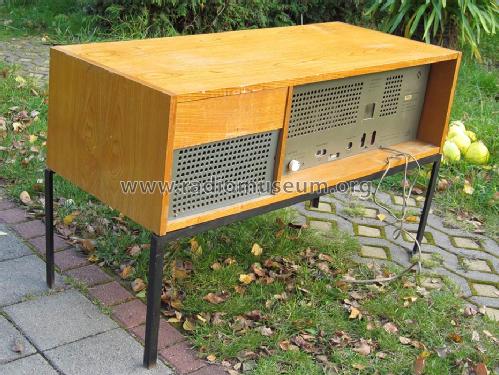

Prospektbild
Aus-Taste über dem Tastensatz fehlt.
Aus-Taste über dem Tastensatz fehlt.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 8 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: RS4 - Heli Gerätebau, Hempel KG;
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 960 x 570 x 410 mm / 37.8 x 22.4 x 16.1 inch
- Notes
-
Weitere Modellvariante mit dem verbesserten Chassis 3001 F. Untergestell aus Stahlprofil.
Untergestell aus Stahlrohr mit L-Profil 20 mm x 20 mm und Wandstärke 3 mm, Abmessungen 960 mm x 300 mm x 410 mm.
- Price in first year of sale
- 730.00 Mark
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967 (Funkverlag Hein, Service-DVD)
