Sensit IC RK88 ab Nr. 70001

• Country
• Germany

• Manufacturer / Brand
• Heli Gerätebau, Hempel KG; Limbach-Oberfrohna, (Ostd.)

• Year
• 1984

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75231

• • alternative name: Gerätebau Limbach VEB
  • Brand: VEB Elektromechanik Mittweida

• Picture

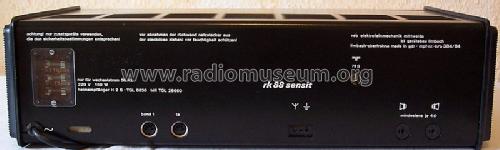

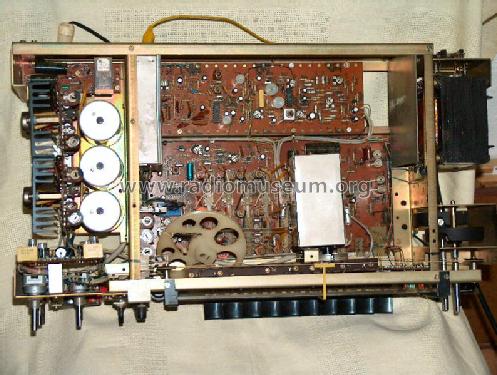

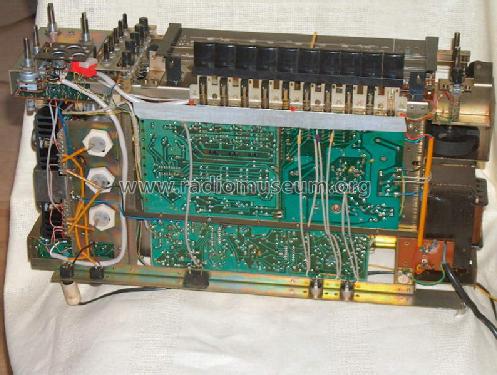

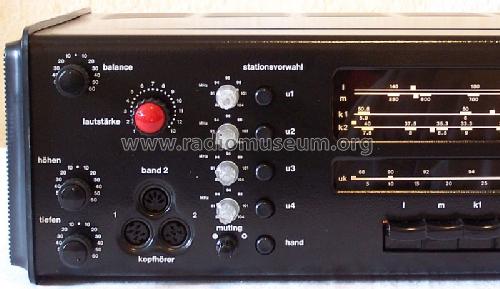

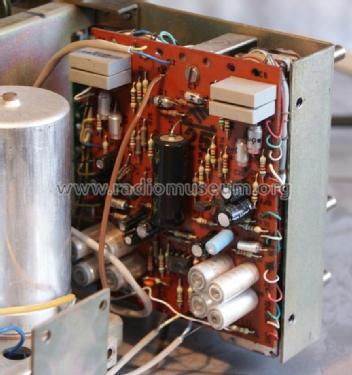

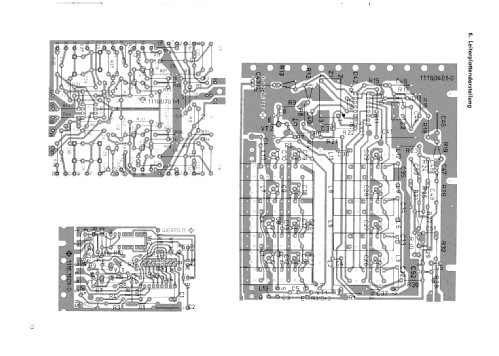

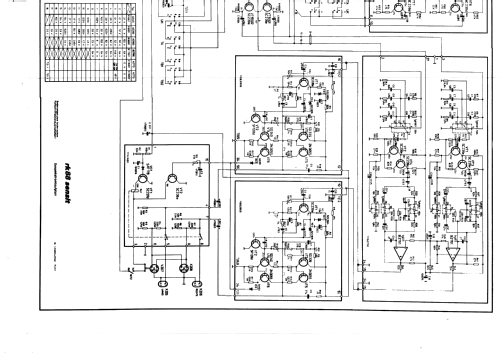

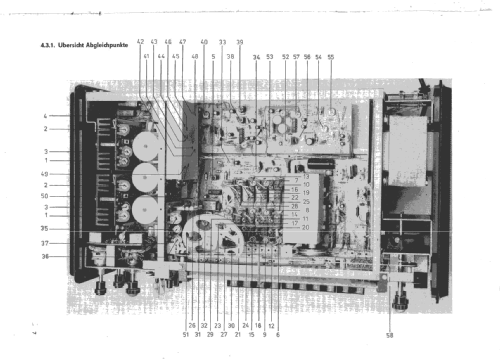

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 41

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Sensit IC RK88 [ab Nr. 70001] - Heli Gerätebau, Hempel KG;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 510 x 130 x 286 mm / 20.1 x 5.1 x 11.3 inch

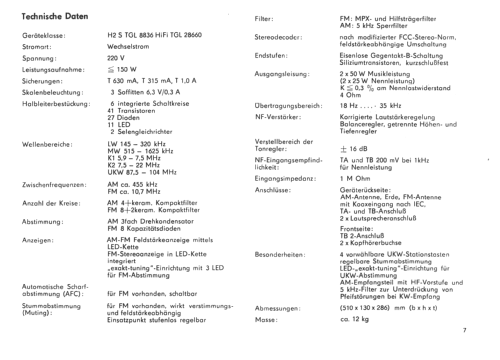

• Notes
• 6 IC, 27 Dioden, 11 LED, 1 Selengleichrichter; Ausgangsleistung 2× 25 Watt Sinus, 4 UKW-Stationstasten, regelbare Stummabstimmung, LED Exakt-Tuning für FM.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 1,675.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• radio fernsehen elektronik H.10/1985

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• Service-DVD Funkverlag B. Hein

• Author
• Model page created by Jörg Kulbe. See "Data change" for further contributors.
