• Country
• Germany

• Manufacturer / Brand
• Heli Gerätebau, Hempel KG; Limbach-Oberfrohna, (Ostd.)

• Year
• 1970 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 261544

• • alternative name: Gerätebau Limbach VEB
  • Brand: VEB Elektromechanik Mittweida

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N3055 2N3055

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Loudspeaker + integr.Amplifier

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.5 cm = 8.5 inch

• Power out
• 12 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

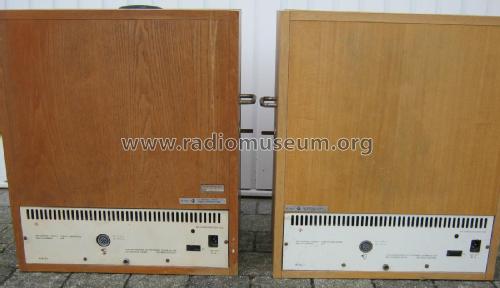

• Model: Studio-Abhörkombination Z132-1 - Heli Gerätebau, Hempel KG;

• Shape
• Console, Highboy (legs > 50 %).

• Notes

• Studio-Abhörlautsprecher höchster Qualität für den Tonstudio-Einsatz.
  Transistorisierter Nachfolger der Studio-Abhöranlage Z 132 (VS 132)
  Der integrierte Verstärker liefert 12 VA an 5 Ω (KSP 215 K)
  Herstellerbezeichnung: VS 132-1
  Endtransistoren: 2x TUNGSRAM 2N 3055
  NF-Eingang: 1,55 V, 7 kΩ, trafosymmetrisch
