• Country
• Germany

• Manufacturer / Brand
• Heliogen, Hermann Pawlik; Bad Blankenburg (GINOR)

• Year
• 1935 ?

• Category
• Antenna (Aerial) or Coupler

• Radiomuseum.org ID
• 248341

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

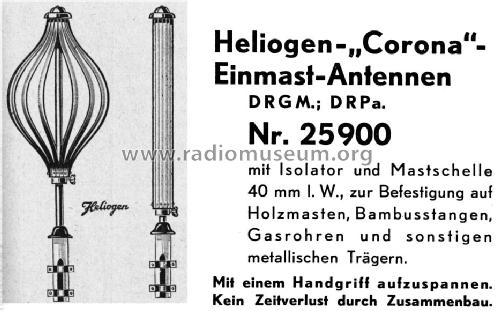

• Model: Corona-Einmast-Antenne 25900 - Heliogen, Hermann Pawlik; Bad

• Dimensions (WHD)
• 550 x 1300 x 550 mm / 21.7 x 51.2 x 21.7 inch

• Notes

• Einmastantenne aus Leichtmetall, deren Oberteil von 6 cm auf 55 cm Durchmesser kugelförmig aufgespannt werden kann. Montage auf Masten mit 40 mm Durchmesser.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Price in first year of sale
• 18.60 RM

• Mentioned in
• Heliogen Katalog RZ200, 1935/36

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
