Einbereich-Super Ginor 28004
Heliogen, Hermann Pawlik; Bad Blankenburg (GINOR)
- Country
- Germany
- Manufacturer / Brand
- Heliogen, Hermann Pawlik; Bad Blankenburg (GINOR)
- Year
- 1935
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 315222

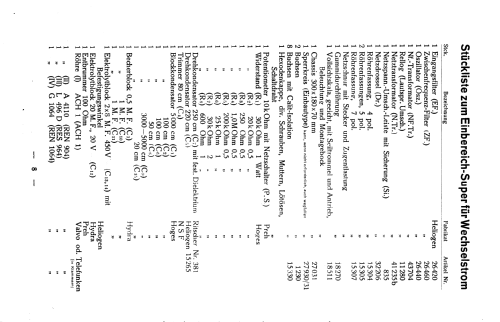

Titelseite des Bauplanes

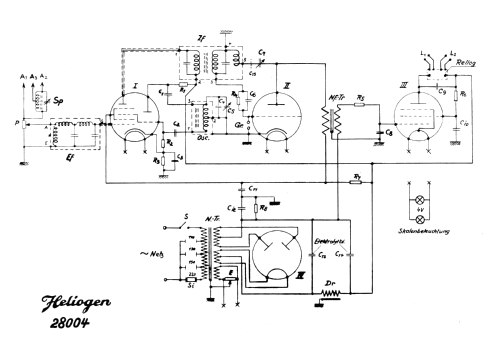

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superhet, single span (BC/MW and LW in 1 band); ZF/IF 1800 kHz
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast and LongWave in ONE range.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- from Radiomuseum.org
- Model: Einbereich-Super Ginor 28004 - Heliogen, Hermann Pawlik; Bad
- Shape
- Chassis only or for «building in»
- Notes
-
Valvo Röhrenbausatz (an Stelle von Telefunken): ACH1, A4110, L496D und G1064.
Preis für den Plan 0,50 RM.
- Mentioned in
- -- Original-techn. papers. (Bauplan in Blaudruck DIN A2)
- Author
- Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
- Other Models
-
Here you find 109 models, 106 with images and 50 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Heliogen, Hermann Pawlik; Bad Blankenburg (GINOR)
