• Country
• Germany

• Manufacturer / Brand
• Heliogen, Hermann Pawlik; Bad Blankenburg (GINOR)

• Year
• 1934–1936

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 120339

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Lautsprecher-Umschalter Rellog 2 11275 - Heliogen, Hermann Pawlik; Bad

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 47 x 50 x 88 mm / 1.9 x 2 x 3.5 inch

• Notes

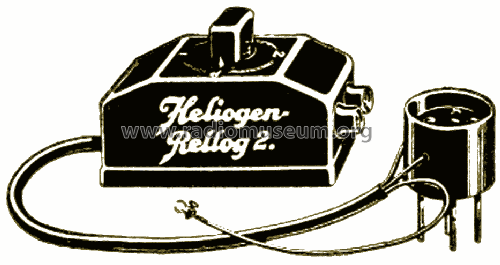

• Tischmodell. Dient zum Anschalten eines zweiten Lautsprechers. Schaltet beide Lautsprecher nach Wunsch einzeln ein oder aus, beide hintereinander oder parallel.
  Mit Zwischensockel, der unter die Endröhre gesteckt wird.

• Price in first year of sale
• 5.50 RM

• Source of data

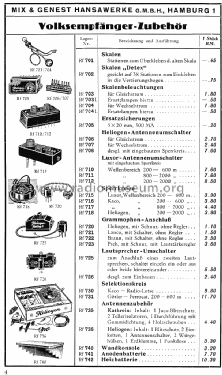

• Radio-Katalog, Mix & Genest Hansawerke, 1935

• Mentioned in

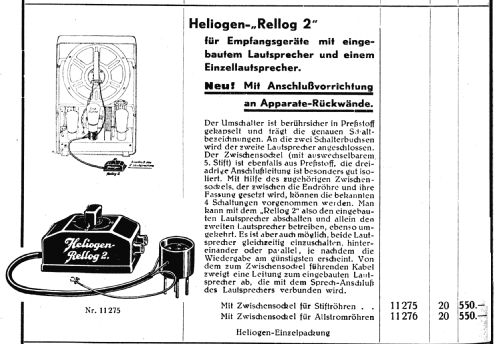

• Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 (Heliogen Liste RZ152a, 1934)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
