• Country
• Germany

• Manufacturer / Brand
• Heliogen, Hermann Pawlik; Bad Blankenburg (GINOR)

• Year
• 1933–1935

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 115520

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Lautsprecher-Umschalter Rellog 1 11270 - Heliogen, Hermann Pawlik; Bad

• Shape
• Miscellaneous shapes - described under notes.

• Notes

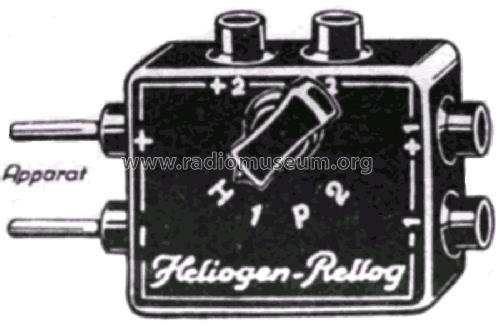

• Ansteck-Adapter für das An- und Umschalten zweier externer Lautsprecher (einzeln, parallel, seriell).

• Price in first year of sale
• 5.00 RM

• Source of data
• Katalog Radio-Zentrale Alex v. Prohaska 1935/1936

• Mentioned in
• - - Manufacturers Literature (Radiotechnische Rundschau 6/7 1934)

• Literature/Schematics (1)

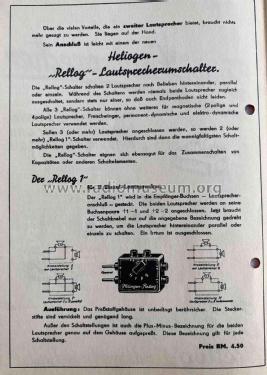

• Heliogen Liste RZ130c, 1933

• Literature/Schematics (2)
• Radio-Katalog, Mix & Genest Hansawerke, 1935

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
