• Country
• Germany

• Manufacturer / Brand
• Heliogen, Hermann Pawlik; Bad Blankenburg (GINOR)

• Year
• 1935 ?

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 248298

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• RF-Circuit or wave trap (separate, can also be an antenna with amp.)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material

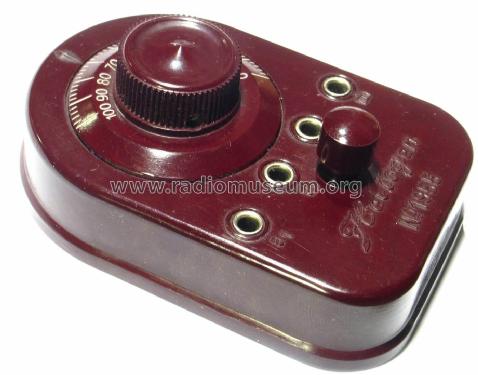

• Bakelite case

• from Radiomuseum.org
• Model: Sideron-Sperrkreis 1955 - Heliogen, Hermann Pawlik; Bad

• Dimensions (WHD)
• 68 x 50 x 100 mm / 2.7 x 2 x 3.9 inch

• Notes

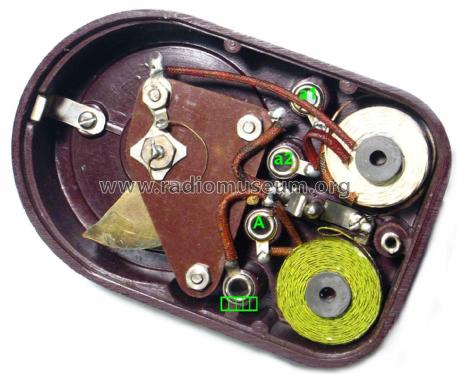

• Verstellbarer Sperrkreis, für LW und MW umschaltbar. HF-Eisenkern-Spulen. Mit 40 cm langer Anschlussschnur.

• Net weight (2.2 lb = 1 kg)
• 0.110 kg / 0 lb 3.9 oz (0.242 lb)

• Price in first year of sale
• 4.80 RM

• Mentioned in
• Heliogen-Katalog RZ200 1936

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
