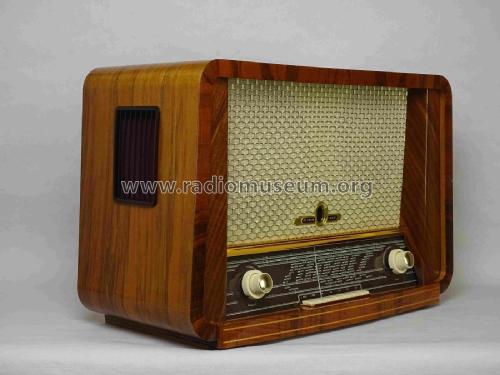

HR-Forte Stereo HR 886 WS

Helkama-Radio Oy; Hanko

Data
Forum
Pictures
Collections

  • Year
  • 1955 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 340600
    • Brand: Ergo

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz; 1 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)     1 FM circuit(s)
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 220; 240 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: HR-Forte Stereo HR 886 WS - Helkama-Radio Oy; Hanko
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 610 x 400 x 280 mm / 24 x 15.7 x 11 inch
  • Notes

  • Wave bands:

    • FM:     88 - 100 MHz
    • SW1:   6 - 17,6 MHz
    • SW2:  1,6 - 5 MHz
    • MW:   515 - 1600 kHz
    • LW:    150 - 400 kHz.
  • Net weight (2.2 lb = 1 kg)
  • 15.6 kg / 34 lb 5.8 oz (34.361 lb)
  • Author
  • Model page created by Kari Hyvönen. See "Data change" for further contributors.
