• Country
• Finland

• Manufacturer / Brand
• Hellberg, Helsinki

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 216118

• Number of Tubes
• 4

• Valves / Tubes
• ECH42 EAF42 ECL113 AZ41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

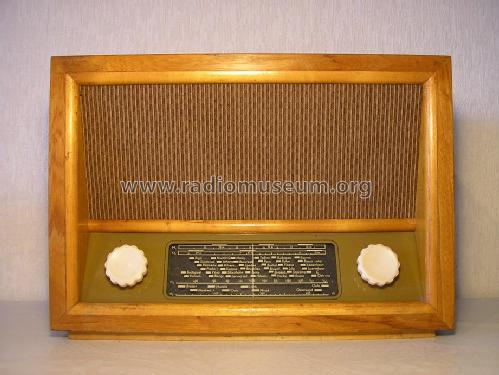

• Model: 353V - Hellberg, Helsinki

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 380 x 267 x 180 mm / 15 x 10.5 x 7.1 inch

• Notes
• Dial lamp: 8045D

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.
