• Country
• Finland

• Manufacturer / Brand
• Oy Helvar; Helsinki

• Year
• 1939 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 225478

• Number of Tubes
• 4

• Valves / Tubes

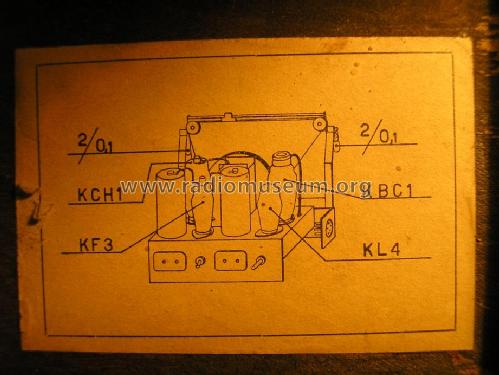

• KCH1 KF3 KBC1 KL4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 & ? Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: SA-KA 640P - Oy Helvar; Helsinki

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 510 x 250 x 215 mm / 20.1 x 9.8 x 8.5 inch

• Notes

• Oy Savo-Karjalan Tukkuliike Helsinki

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.
