• Country
• Finland

• Manufacturer / Brand
• Oy Helvar; Helsinki

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97964

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EK2 EF9 EBL1 AZ1

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 220, 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

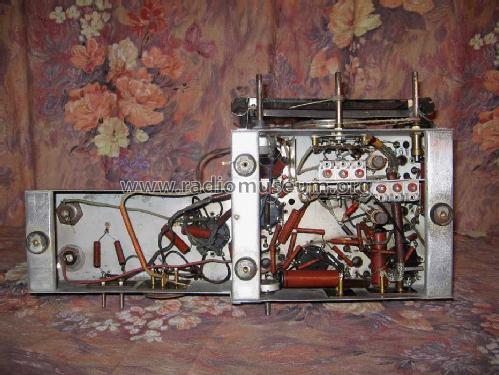

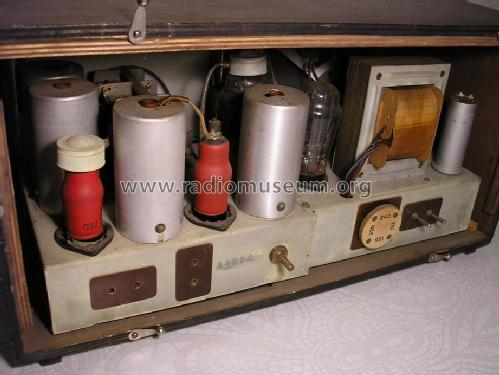

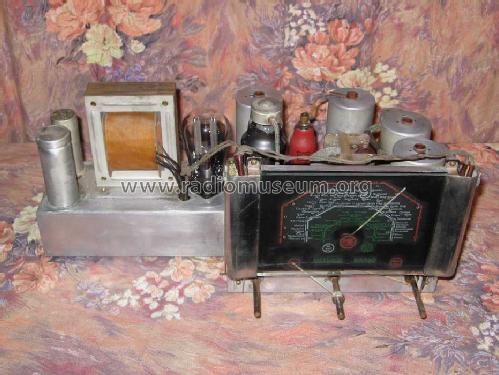

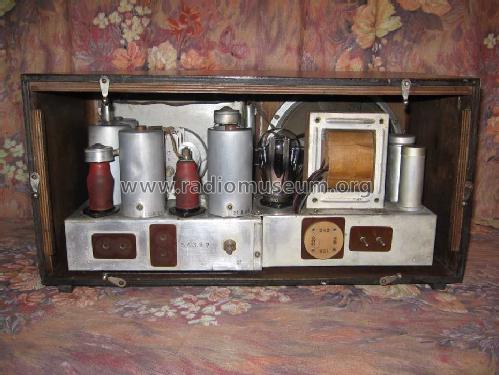

• Model: Super 469A - Oy Helvar; Helsinki

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 485 x 246 x 260 mm / 19.1 x 9.7 x 10.2 inch

• Net weight (2.2 lb = 1 kg)
• 9.4 kg / 20 lb 11.3 oz (20.705 lb)

• Price in first year of sale
• 2,650.00 FMK

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Eero Ukkola. See "Data change" for further contributors.
