• Country
• United States of America (USA)

• Manufacturer / Brand
• Horn Radio Mfg. Co., Herbert H. (Tiffany Tone); Los Angeles, CA

• Year
• 1936 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 44204

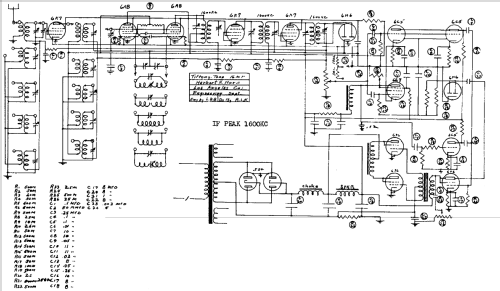

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6K7 6A8 6A8 6K7 6K7 6H6 6C5 6K7 6C5 6H6 6C5 6F6 6F6 6F6 5Z4 5Z4

• Main principle
• Superhet with RF-stage; ZF/IF 1600 kHz; 3 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: Tiffany Tone 16MT - Horn Radio Mfg. Co., Herbert H

• Notes
• Push-pull audio amplifier.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before
