Tiffany Tone 9 MTC
Horn Radio Mfg. Co., Herbert H. (Tiffany Tone); Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Horn Radio Mfg. Co., Herbert H. (Tiffany Tone); Los Angeles, CA
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 44246
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 1600 kHz; 2 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

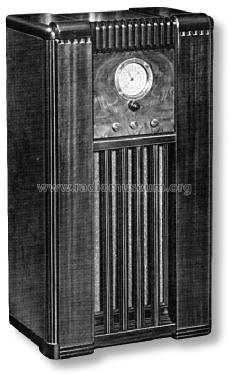

- Model: Tiffany Tone 9 MTC - Horn Radio Mfg. Co., Herbert H
- Shape
- Console with any shape - in general
- Notes
-
The rectifier 5Z4 and other tubes indicate that the model can not be before 1935. See also the same Tiffany Tone model 16 MTC with the 16-tube chassis.
- Price in first year of sale
- 99.90 $
- External source of data
- Ernst Erb
- Source of data
- Pre-War Consoles
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Literature/Schematics (1)
- Rider's Perpetual, Volume 7 = 1936 and before
- Literature/Schematics (3)

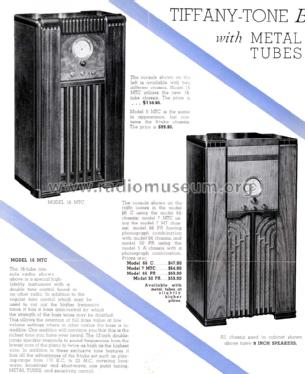

- The Tiffany-Tone Folder for 1936.
