• Country
• Spain

• Manufacturer / Brand
• Herfor; Radioelectrónica Fortuny; Barcelona

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116143

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2N409 2N409 OC44 OC72 OC72 unknown_tr unknown_tr

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

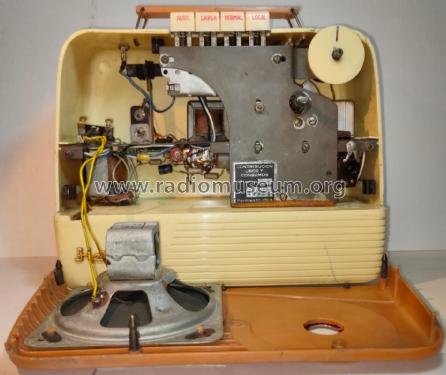

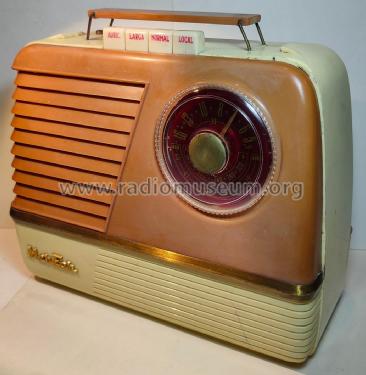

• Model: Transistor Clipper CC22 - Herfor; Radioelectrónica

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 235 x 200 x 110 mm / 9.3 x 7.9 x 4.3 inch

• Net weight (2.2 lb = 1 kg)
• 1.750 kg / 3 lb 13.7 oz (3.855 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
