- Country
- Denmark
- Manufacturer / Brand
- Herofon (Herophon), Hede Nielsens Fabriker; Horsens
- Year
- 1946 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 331664
-
- alternative name: Hede Nielsen's Fabrikker A/S
- Number of Tubes
- 6
- Valves / Tubes
- ECH21 ECH21 unknown_Tube 35L6GT unknown_Magic-Eye 35Z5GT
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

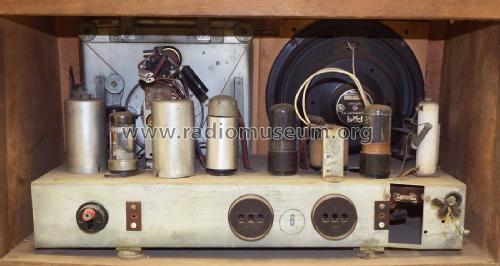

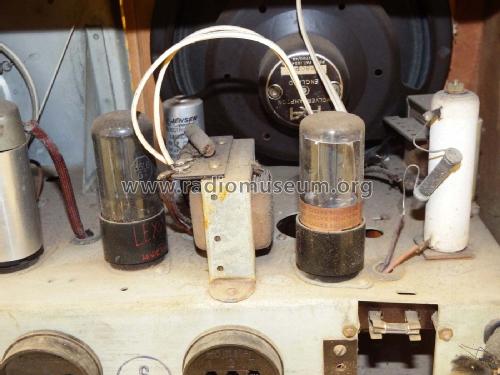

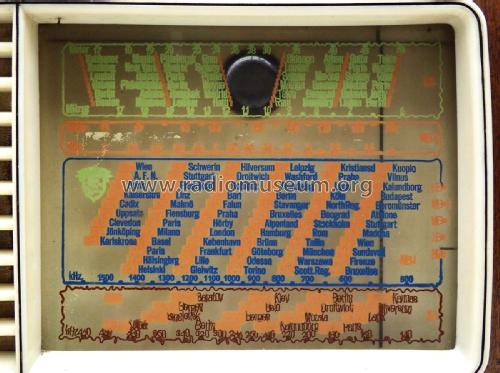

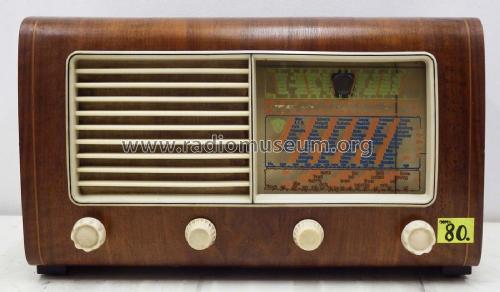

- Model: 560U - Herofon Herophon, Hede
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 515 x 300 x 250 mm / 20.3 x 11.8 x 9.8 inch
- Notes
-
SW range is Marine band.
- Other Models
-
Here you find 77 models, 61 with images and 28 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
