• Country
• Denmark

• Manufacturer / Brand
• Herofon (Herophon), Hede Nielsens Fabriker; Horsens

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 112185

• • alternative name: Hede Nielsen's Fabrikker A/S

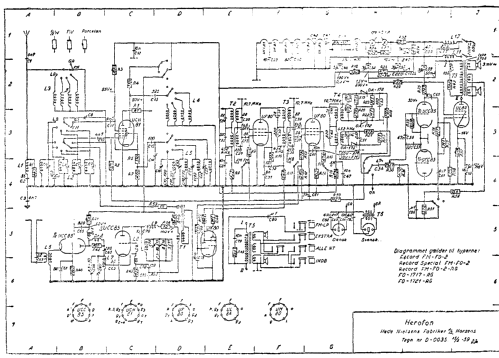

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• UCC85 UCH81 UF80 UF80 UM80 UCC85 UL84

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Record FM-FO-2 - Herofon Herophon, Hede

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 210 x 310 mm / 19.3 x 8.3 x 12.2 inch

• Notes

• Super Sonic. 4 push buttons for speaker selection. Printed circuit board.

• Mentioned in
• -- Schematic

• Author
• Model page created by Manfred Scharf. See "Data change" for further contributors.
