• Country
• Denmark

• Manufacturer / Brand
• Herofon (Herophon), Hede Nielsens Fabriker; Horsens

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 135503

• • alternative name: Hede Nielsen's Fabrikker A/S

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCC85 UCH81 UF89 UABC80 UM80 UL84

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Record Special FM-EJ - Herofon Herophon, Hede

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 485 x 370 x 350 mm / 19.1 x 14.6 x 13.8 inch

• Notes

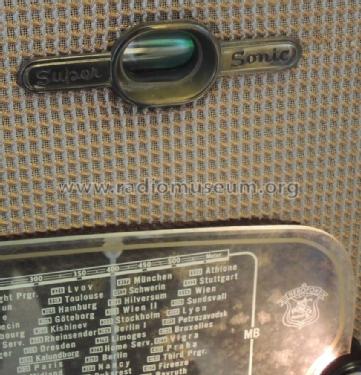

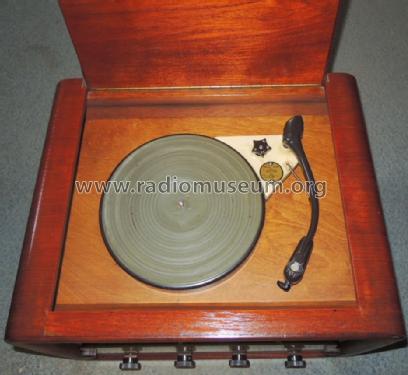

• Super Sonic. Built-in 4-speed Garrard 4SP record player.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
