• Country
• Denmark

• Manufacturer / Brand
• Arena, Hede Nielsens Fabriker; Horsens

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 165785

• • alternative name: Hede Nielsen's Fabrikker A/S

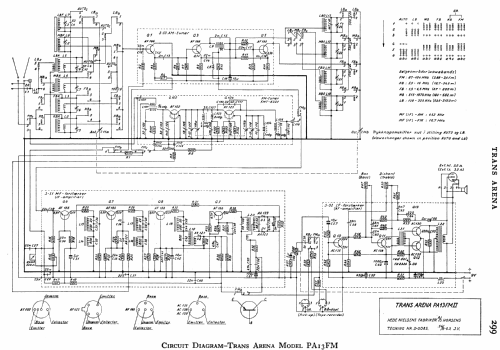

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / D: 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

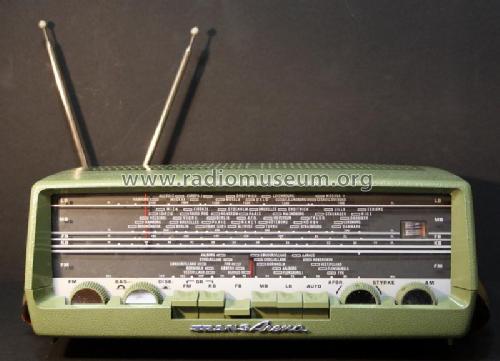

• Model: Trans Arena PA-13-FM - Arena, Hede Nielsens Fabriker;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 310 x 240 x 120 mm / 12.2 x 9.4 x 4.7 inch

• Notes

•

  See also the successor Trans Arena PA13FM II.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Author
• Model page created by Peter Gransitzki. See "Data change" for further contributors.
