Radio receiver-transmitter RT111-TRC-20
Herold Radio & Television Mfg Corporation; New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Herold Radio & Television Mfg Corporation; New York
- Year
- 1952
- Category
- Military Transceiver (TRX)
- Radiomuseum.org ID
- 245782
- Number of Tubes
- 15
- Main principle
- Transceiver
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
- Power out
- 1.5 W (max.)
- Material
- Metal case
- from Radiomuseum.org

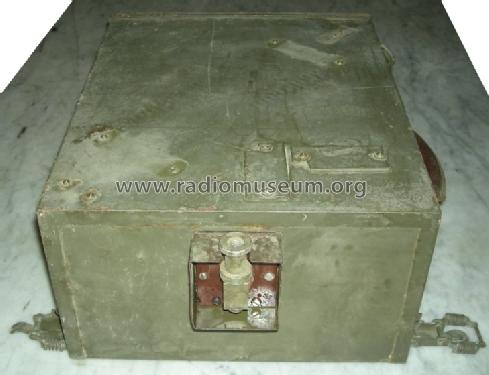

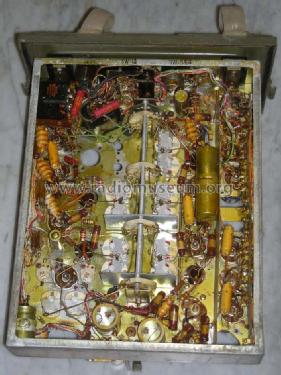

- Model: Radio receiver-transmitter RT111-TRC-20 - Herold Radio & Television Mfg
- Shape
- Rack
- Dimensions (WHD)
- 350 x 180 x 440 mm / 13.8 x 7.1 x 17.3 inch
- Notes
-
Radio Set TRC-20 is a low power, short range, FM (voice), transmitting and receiving equipment. It is used as part of a sound ranging system to detect low-frequency artillery reports or shell explosions in the field, and to relay this information to a central location for plotting purposes.
In operation, there were three remote units connected to transducers sitting on or buried in the ground. A fourth unit was the central receiver, and included a recorder from whose output the fall of shells was analyzed.Frequency range: 27.0 - 38.9 MHz.
- Net weight (2.2 lb = 1 kg)
- 100 lb 0 oz (100 lb) / 45.4 kg
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
