• Country
• Germany

• Manufacturer / Brand
• Herric, Bad Schandau; (Ostd.)

• Year
• 1957 ?

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 152790

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 EF85 EF85 EF85 EAA91

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Tuned circuits
• 11 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Powered by external power supply or a main unit. / 6,3 & DC 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

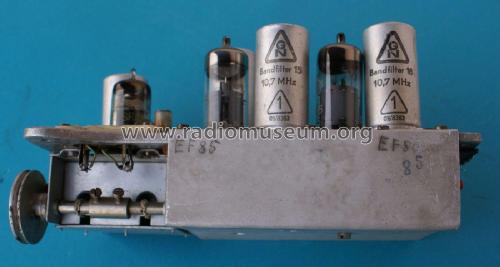

• Model: UKW-Vorsatzgerät HR43/57 - Herric, Bad Schandau; Ostd.

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 195 x 100 x 120 mm / 7.7 x 3.9 x 4.7 inch

• Notes

• Das Gerät ist mit dem Gustav Neumann UKW-Spulensatz SSp 223 auf einer 5 mm starken Aluminium-Gussplatte aufgebaut.

• Source of data
• Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967

• Mentioned in
• Funkverlag Hein, Service-DVD

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
