• Country
• Germany

• Manufacturer / Brand
• Hescho - Keramische Werke Hermsdorf, VEB - TRIDELTA; Hermsdorf/Thüringen

• Year
• 1988–1990

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 137196

• • alternative name: Hermsdorf-Schomburg-Is (Mobit + Kahla) || Keramische Werke Hermsdorf
  • Brand: KWH Hermsdorf, VEB

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - Is a Headphone or Earphone

• Material
• Various materials

• from Radiomuseum.org
• Model: DMK88 MK - Hescho - Keramische Werke

• Notes
• Dynamischer Mono-Miniaturkopfhörer mit 1,5 m Anschlußleitung und Klinkenstecker 3,5 mm (2-polig), Übertragungsbereich 20...20000 Hz, Nennscheinwiderstand 20 Ohm, Hersteller VEB Keramische Werke Hermsdorf (vormals Hescho).

• Net weight (2.2 lb = 1 kg)
• 0.1 kg / 0 lb 3.5 oz (0.22 lb)

• Source of data

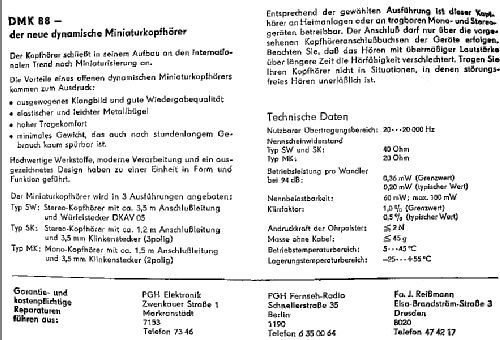

• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
