• Country
• Germany

• Manufacturer / Brand
• Heschü, Helmut Schülmann; Berlin

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 92148

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• AF101 OC604

• Main principle
• TRF with diode detector; 1 AF stage(s); Reflex

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 22,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Gloria Spezial II - Heschü, Helmut Schülmann;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 110 x 80 x 40 mm / 4.3 x 3.1 x 1.6 inch

• Notes
• Einkreiser in Reflexschaltung mit gedruckter Schaltung (Platine, Logo: WURL).

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Price in first year of sale
• 54.00 DM

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)

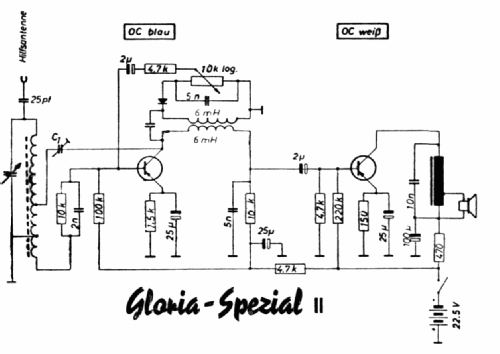

• -- Schematic

• Author
• Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
