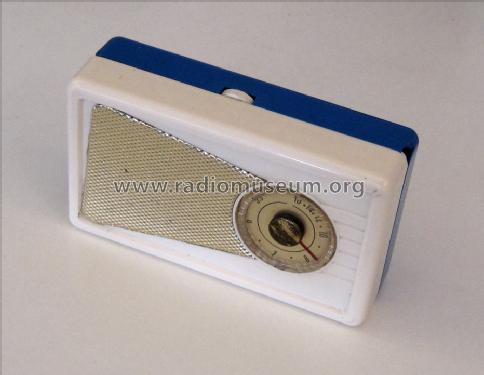

Hobby 61
Heschü, Helmut Schülmann; Berlin
- Country
- Germany
- Manufacturer / Brand
- Heschü, Helmut Schülmann; Berlin
- Year
- 1961 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 228273
Gerät mit "hobby"-Emblem
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Hobby 61 - Heschü, Helmut Schülmann;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 150 x 85 x 45 mm / 5.9 x 3.3 x 1.8 inch
- Notes
-
Schaltungsverlauf: Selbstschwingende Mischstufe AF101, 3-fach-Bandfilter aus Einzelkreisen, ZF-Stufe AF101, Zf-Kreis, aktiver Gleichrichter AF101, NF-Treiberstufe, Gegentakt-Endstufe
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- Mentioned in
- VDRG Handbuch 1963/64 Seite B234 "Varta Pertrix Batterien": Gerät gelistet als "Wurl Hobby 61"
- Author
- Model page created by Wolfgang Gebert. See "Data change" for further contributors.
