Digital Voltmeter 3460B

• Country
• United States of America (USA)

• Manufacturer / Brand
• Hewlett-Packard, (HP); Palo Alto, CA

• Year
• 1967 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 139842

• Picture
• Schematics

Previous Next

Previous Next

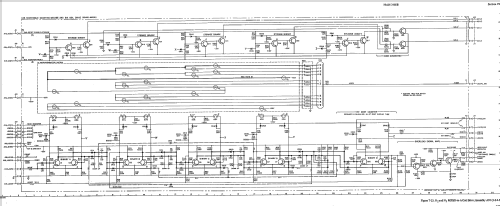

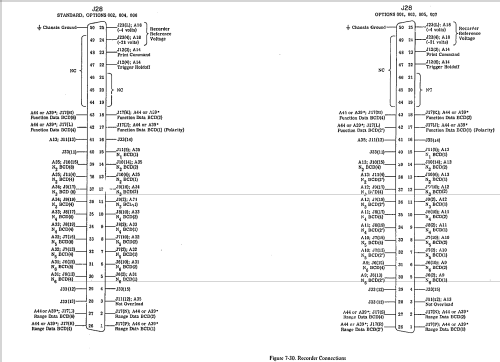

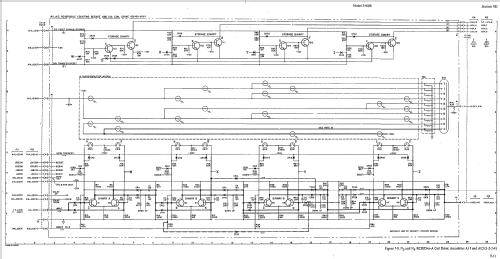

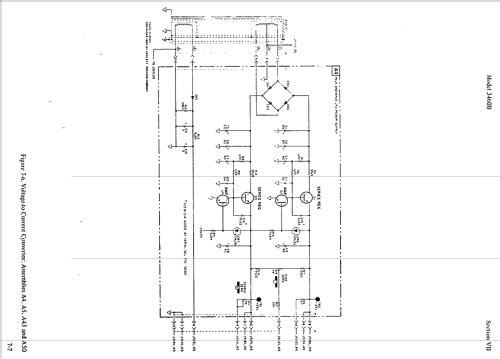

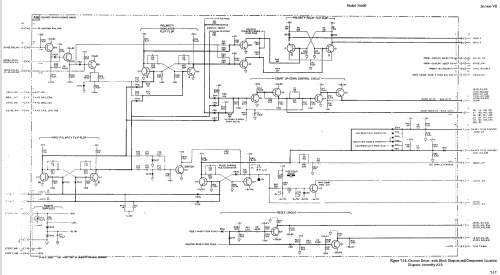

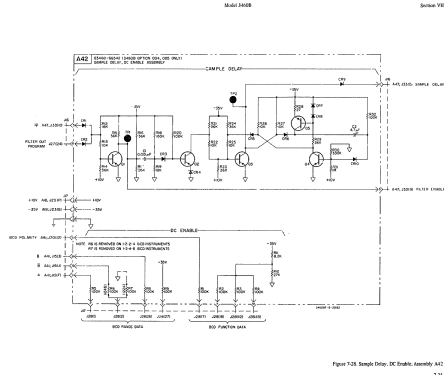

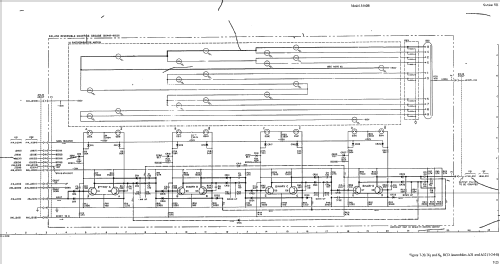

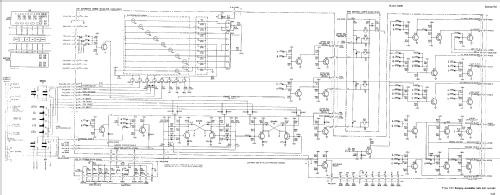

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Digital Voltmeter 3460B - Hewlett-Packard, HP; Palo Alto

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 425 x 128 x 543 mm / 16.7 x 5 x 21.4 inch

• Notes
• Digital Voltmeter +/-1.00000 to +/-1000.00 Volts in 4 Ranges. Auto-Ranging. Nixie tube readout using tubes specific to HP. Accuracy 0.004% Input impedance 10 Megohms. Uses several hundred transistors.

• Source of data
• - - Manufacturers Literature
