• Country
• United States of America (USA)

• Manufacturer / Brand
• Hewlett-Packard, (HP); Palo Alto, CA

• Year
• 1966

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 171012

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Material
• Metal case

• from Radiomuseum.org

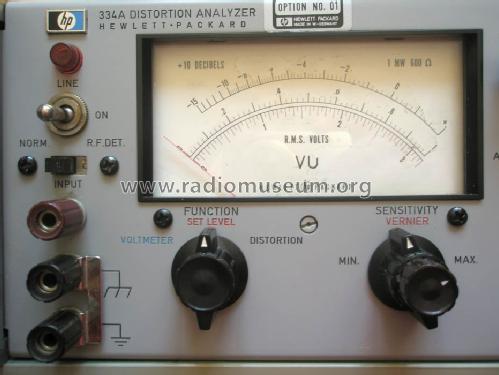

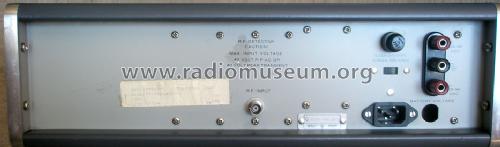

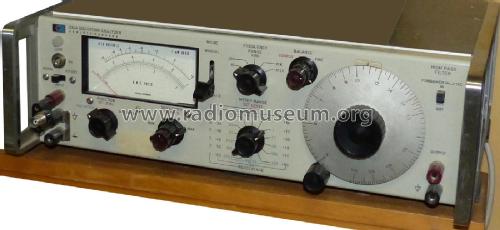

• Model: Distortion Analyzer 334A - Hewlett-Packard, HP; Palo Alto

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 426 x 140 x 335 mm / 16.8 x 5.5 x 13.2 inch

• Notes
• Wien bridge Distortion analyzer. Fundamental frequency span 5 Hz to 600 kHz in 5 ranges.
  Built-in RF Detector for AM RF carrier signal (550 - 1600 kHz).

  Analizador automático de distorsión y voltímetro de auio. Rango de medida de distordión: Fundamental de 5Hz a 600KHz, 7 rangos del de 0.1% al 100%. Rango de medida como voltímetro: 13 rangos de 0.3 mV a 300V. Detector de AM: frecuencia portadora de 550 KHz a 1.6 MHz.

• Net weight (2.2 lb = 1 kg)
• 8.4 kg / 18 lb 8 oz (18.502 lb)

• Price in first year of sale
• 790.00 $

• Literature/Schematics (1)
• HP Journal Vol. 17, No. 8, p.2, April 1966

Reparaturbericht HP 334A von Michael Buschmann

859 KB
