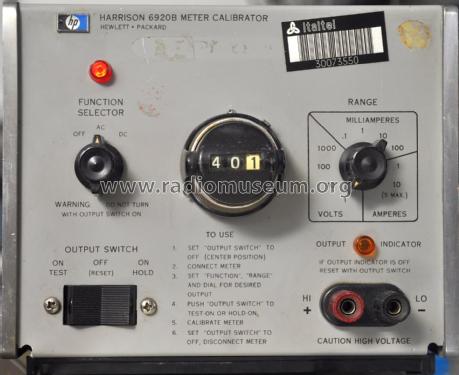

Harrison-Meter Calibrator 6920B

Hewlett-Packard, (HP); Palo Alto, CA

Data
Forum
Pictures
Collections

  • Year
  • 1969 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 272541

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Harrison-Meter Calibrator 6920B - Hewlett-Packard, HP; Palo Alto
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 198 x 165 x 320 mm / 7.8 x 6.5 x 12.6 inch
  • Notes

  • The Hewlett Packard 6920B is a feedback-regulated power source particularly suited for calibration of meters.  Ten continuously variable output ranges are provided, ranging from 1 volt to 1000 volts and from 100µA to 5A full output.  All ranges provide either dc or ac at the power line frequency.  Compact construction,through the use of all semiconductor circuitry, allows for easy portability.  Built-in current and voltage limiting circuits protect the 6920B from short circuit loads in voltage ranges and open circuit loads in current ranges.

  • Net weight (2.2 lb = 1 kg)
  • 6.5 kg / 14 lb 5.1 oz (14.317 lb)
  • Mentioned in
  • - - Manufacturers Literature (Operation manual)
  • Author
  • Model page created by Antonio Marra. See "Data change" for further contributors.
