Oscilloscope 150A
Hewlett-Packard, (HP); Palo Alto, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hewlett-Packard, (HP); Palo Alto, CA
- Year
- 1957
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 125287

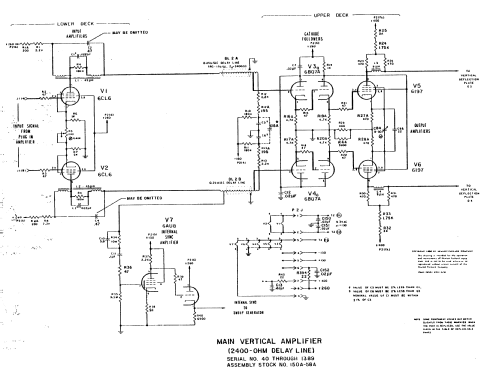

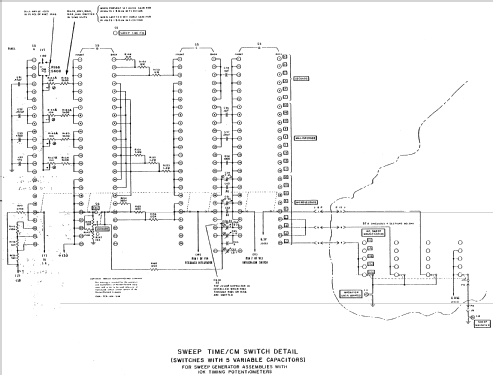

Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oscilloscope 150A - Hewlett-Packard, HP; Palo Alto
- Shape
- Tablemodel, with any shape - general.
- Notes
-
High-frequency oscilloscope mainframe. DC to >10 MHz Y bandwidth; 20 ns/cm to 5 s/cm X sweep.
Requires one single or dual channel vertical plug-in.This unit can be equipped with three plug-in insertable amplifier units:
151A: High gain amplifier.
152B: Dual track differential amplifier.
153A: High gain differential amplifier.
Sweep speed: from 0.02 µsec/cm to 15 sec/cm.
- Price in first year of sale
- 1,100.00 $
- Literature/Schematics (1)
- Original ad from Electronics, October 1, 1957
- Literature/Schematics (2)
- -- Original prospect or advert (L'Elettrotecnica, Italy, number 9, September 1958)
- Author
- Model page created by Emilio Ciardiello. See "Data change" for further contributors.
