• Country
• United States of America (USA)

• Manufacturer / Brand
• Hewlett-Packard, (HP); Palo Alto, CA

• Year
• 1978 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 256766

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100; 120; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope 1743A - Hewlett-Packard, HP; Palo Alto

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 335 x 197 x 597 mm / 13.2 x 7.8 x 23.5 inch

• Notes

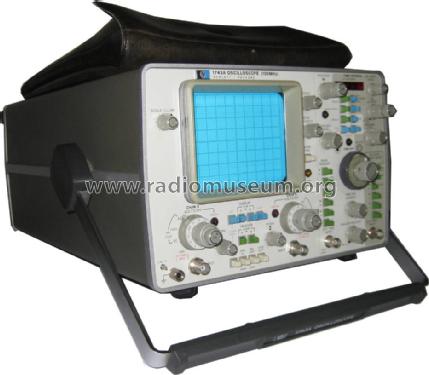

• The Model 1743A is a dual channel oscilloscope with a built-in 100MHz quartz controlled counter and a 5-digit display for direct time measurements on the screen. In alternating or chopper mode it is possible to display three signals, Channel A, Channel B, and the trigger signal.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 15,000.00 DM
