Oscilloscope 1744A
Hewlett-Packard, (HP); Palo Alto, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hewlett-Packard, (HP); Palo Alto, CA
- Year
- 1978
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 142635
Original-techn. papers.
Original-techn. papers.
Original-techn. papers.

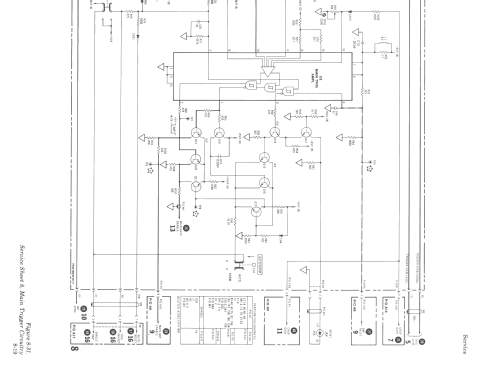

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Power type and voltage
- Alternating Current supply (AC) / 100; 120; 220; 240 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: Oscilloscope 1744A - Hewlett-Packard, HP; Palo Alto
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 335 x 197 x 632 mm / 13.2 x 7.8 x 24.9 inch
- Notes
- 100MHz Zweikanal Oszilloskop mit Speicherung. In der Betriebsart "Alternate" oder "Chop" ist es möglich 3 Signale darzustellen. Das Kanal A-Signal, das Kanal B-Signal und das Triggersignal.
- Net weight (2.2 lb = 1 kg)
- 13.8 kg / 30 lb 6.3 oz (30.396 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Michael Mehnert. See "Data change" for further contributors.
