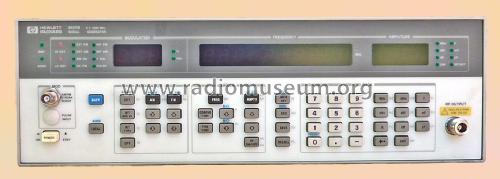

Synthesized Signal Generator 8657B
Hewlett-Packard, (HP); Palo Alto, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hewlett-Packard, (HP); Palo Alto, CA
- Year
- 1991 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 182001
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 100; 120; 220; 240; Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Synthesized Signal Generator 8657B - Hewlett-Packard, HP; Palo Alto
- Shape
- Rack
- Dimensions (WHD)
- 425 x 133 x 520 mm / 16.7 x 5.2 x 20.5 inch
- Notes
- Fequency Range: 100KHz to 2060MHz.
AM, FM, and optional pulse modulation.
1KHz frequency resolution.
+/_1dB absolute level accuracy (typically +/_0,5 dB.
50W reverse power protection.
Timebase aging rate: +/_ 2 ppm/year. Option 001:1X10-9 parts/day after 45 days.
- Net weight (2.2 lb = 1 kg)
- 20.5 kg / 45 lb 2.5 oz (45.154 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
