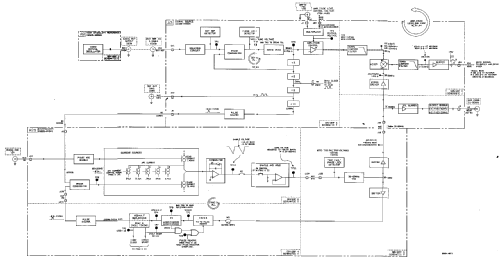

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors

• Power type and voltage
• Alternating Current supply (AC) / 110-260 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Synthesizer/Level Generator 3336A/B/C - Hewlett-Packard, HP; Palo Alto

• Shape
• Rack

• Dimensions (WHD)
• 430 x 150 x 510 mm / 16.9 x 5.9 x 20.1 inch

• Notes

• HP 3336A/B/C, 10Hz - 21MHz Synthesizer / Level Generator

  Used in conjunction with the  Model 3586A/B/C Selective Level Meter to send a signals on one voice channel on an analogue broadband FDM system for performance measurements.

  It generates precise frequencies and levels over a frequency range of 10 Hz to 20.999 999 999 MHz. Output levels are accurate within ±0.05 dB, and integrated phase noise is less than -60 dBc.

  Available in models A,B & C.

  The A & B versions are for designed for telephone testing in Europe and North America.

  The C version of is for general-purpose manufacturing and maintenance applications.

  FREQUENCY RANGE



  Model 3336A: 75 ohm unbalanced 10 Hz to 20.999 999 999 MHz

  150 ohm balanced 10 Hz to 20.999 999 999 MHz

  600 ohm balanced   200 Hz to 109.999 999 kHz



  Model 3336B:  75 ohm unbalanced 10 Hz to 20.999 999 999 MHz

  124 ohm balanced 10 Hz to 10.999 999 999 MHz

  135 ohm balanced 10 Hz to 2.099 999 999 MHz

  600 ohm balanced   200 Hz to 109.999 999 kHz



  Model 3336C: 50 ohm unbalanced 10 Hz to 20.999 999 999 MHz

                          75 ohm unbalanced 10 Hz to 20.999 999 999 MHz

  Resolution:

  1 uHz for frequencies <100 kHz

  1 MHz for frequencies ≥ 100 kHz

  Accuracy: (instruments without Option 004)

  ± 5 x 1 0- 6 of programmed frequency

  Aging Rate: (instruments without Option 004)

  ±5 x 10- 6 per year (20° to 30°C}

  Warm-Up Time:

  30 minutes

  AMPLITUDE RANGE:



  Model 3336A: 75 ohm unbalanced -72.99 to +7.00dBm

  150 ohm balanced -78.23 to +1.76dBm

  600 ohm balanced   -72.99 to +7.00dBm



  Model 3336B:  75 ohm unbalanced -72.99 to +7.00dBm

  124 ohm balanced -78.23 to +1.76dBm

  135 ohm balanced -78.23 to +1.76dBm

  600 ohm balanced   -72.99 to +7.00dBm
